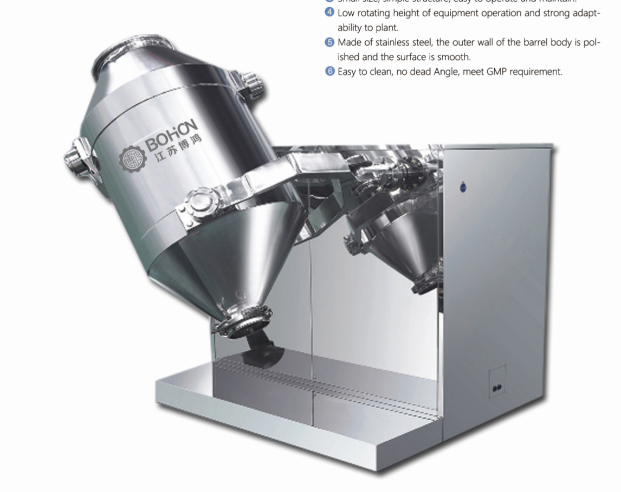

1, SBH series three-dimensional mixer - equipment overview

  Three-dimensional mixer is a new type of material mixing equipment widely used in pharmaceutical, chemical, food, metallurgy, light industry and scientific research units. It is suitable for the mixing of powdery or granular materials with good fluidity. The three-dimensional oscillating mixer supports the three-dimensional movement of the mixing barrel in the X, Y, and Z directions by the universal joint of the driving shaft and the passive shaft, and performs a revolving motion. The materials in the mixing barrel are used for diffusion, flow and shearing movement from time to time, which enhances the mixing effect of the material. The three-dimensional movement of the mixing barrel overcomes the influence of centrifugal force generated by mixing of other kinds of mixers, and reduces the segregation of material gravity. To ensure the mixing efficiency of materials.

2, SBH series three-dimensional mixer - equipment advantages

High-efficiency, energy-saving powder mixer with good mixing uniformity, short time, aseptic, dust-free and fully enclosed;

The loading coefficient is large, the general mixer loading coefficient does not exceed 0.5, and the SBH three-dimensional mixer can reach 0.8;

Small in size, simple in structure, easy to operate and maintain;

The equipment has a low rotation height and is adaptable to the plant;

Made of stainless steel, the inner and outer walls of the barrel are polished and the surface finish is good;

Easy to clean, no dead ends, in line with GMP requirements.

3, SBH series three-dimensional mixer - equipment advantages

   This series of mixers mainly consists of a frame, a drive system, a universal rocker arm mechanism, a mixing cylinder and the like. The exterior is mirror-glossy and beautiful in appearance.

1. Rack box: steel plate structure, stainless steel panel attached, excellent rigidity and stability;

2, the drive system: motor, reducer and electrical system, the transmission is stable and reliable, at the same time can make the inlet and outlet can accurately stay in the best position;

3. The universal rocker arm mechanism is made of all stainless steel and the surface is mirror polished;

4. Mixing cylinder: full-quality stainless steel mirror polishing inside and outside. The inlet and outlet ports are sealed by a clamp-type flange for easy operation.
